MB-70

MB-70 is a modern aluminium system intended for realizations of exterior architectural building elements requiring thermal and acoustic insulation, such as: various types of windows, doors, vestibules, display windows or spatial structures. It features enhanced thermal qualities thanks to the special insulating inserts inside the profiles and under the glass area.

The MB-70 system is characterized by a very low value of the overall heat-transfer coefficient Uf, thanks to application of the thermal breaks and gaskets. This is of a great significance in the times of increasing demands for the energy management and the environment protection.

Discover the advantages of the MB-70 system

  • MB-70 allows for the fabrication of burglar-resistant windows & doors up to class RC4. In addition based on this system it is possible to create smoke exhaust windows and other types of windows including “concealed sash-windows” (MB-70US / MB-70US HI, MB-70SG) and another version suitable for historic buildings (MB-70 Industrial) . The system is also a base for MB-70CW / MB-70CW HI-based “cold-warm” curtain wall.
  • The system allows application of sets of glass panel of the thickness equal from 21 mm to 57 mm in window casements, and from 12 mm to 48 mm in fixed windows and door leafs. Such a wide thickness range of infill guarantees the possibility to apply all typical and untypical glass panels.
  • A wide choice of colors in the standard palette makes it possible to meet the needs of our most discerning customers. Color coatings are made by powder coating or anodizing.

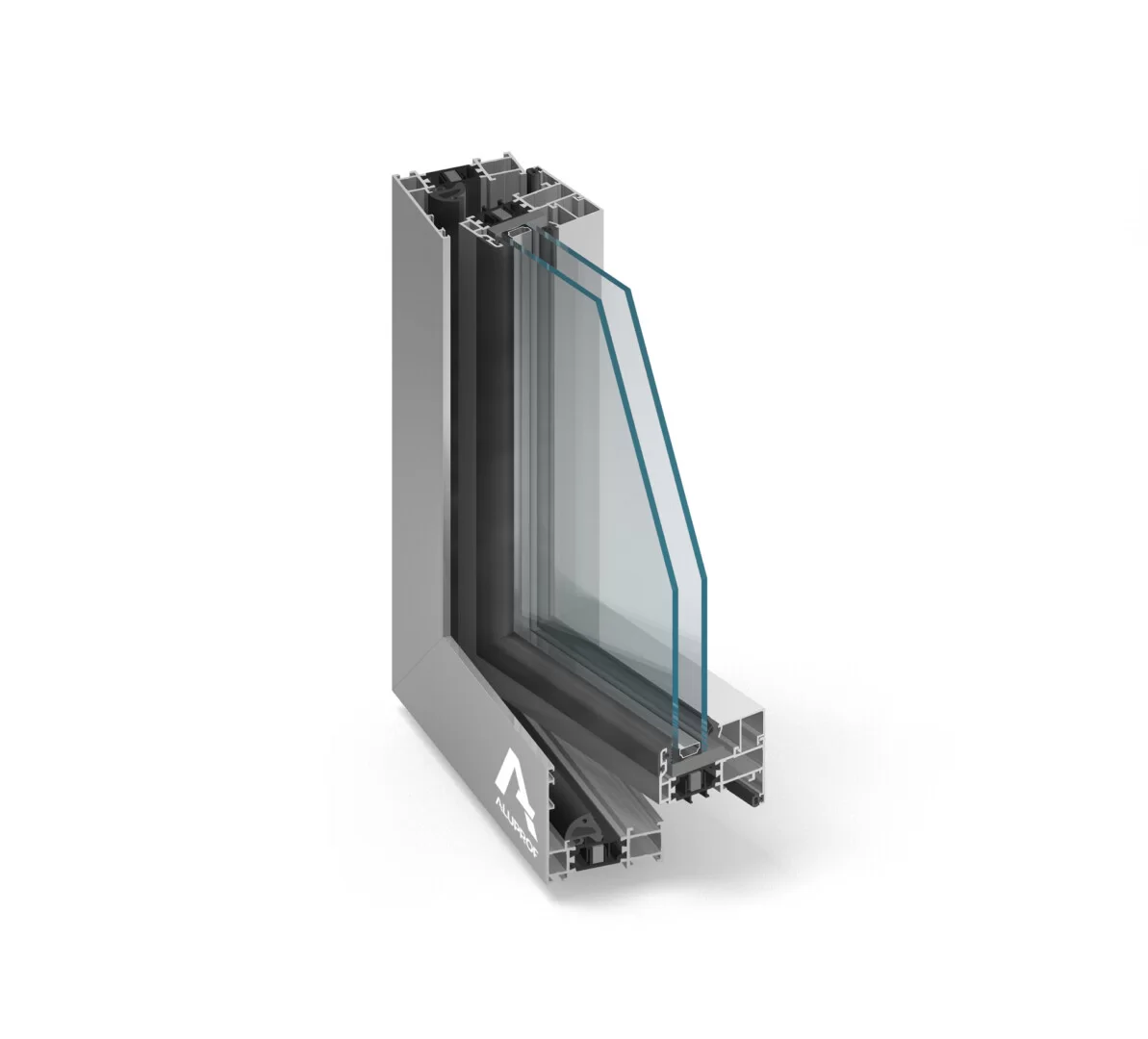

  • The system profiles have a three-chamber structure. The structural depth of the window sections is equal to 70 mm (frames) and 79 mm (casement), and for doors: 70 mm and 70 mm respectively.

Haven’t found what you’re looking for? Our offer includes all Aluprof building systems. Our specialists will help you choose the best solution.
