S 9000

PERFECTION IN EVERY WAY

PVC windows in the Gealan S9000 system are characterized by a modern look and unique utility values that meet even the highest expectations of investors! The Gealan S9000 system is synonymous with very good thermal insulation parameters with the use of standard steel reinforcements. This versatile and energy-saving, modern system is dedicated to windows, doors and lift-and-slide doors. S9000 has a 6-chamber construction and the possibility of using triple glazing and an additional central gasket.

Gealan S9000 system offers high quality and is ideal for developers specializing in building houses, buildings or energy-saving housing estates. It is also a solution for customers who value comfort, quality and excellent thermal parameters. The new GEALAN S 9000 system with a depth of 82.5mm has an excellent thermal insulation of Uf=0.92W/m²K thanks to the properties of the material itself and the multi-chamber structure of the profiles.

Windows are one of the most exposed elements of the house and therefore must practical as well as beautiful! The palette of the veneer has more than 50 colors and shades available thanks to the system provider which can create a coherent design of the entire facade of the building.

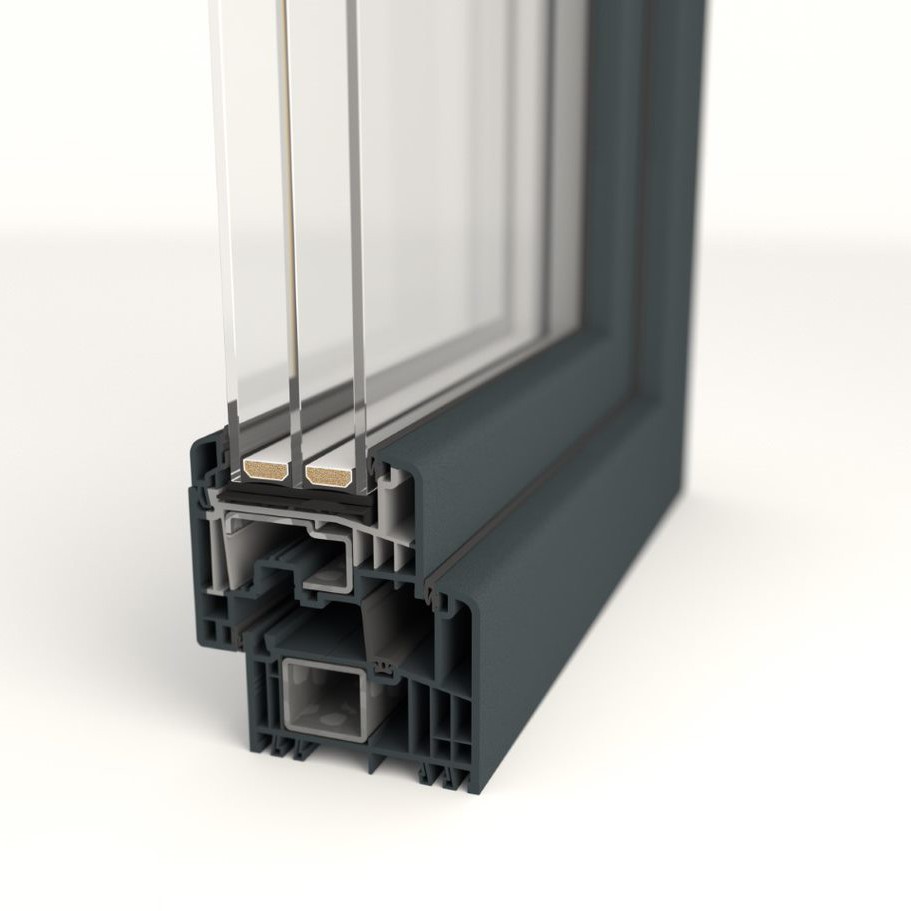

6-chamber frame and sash, 82.5mm installation depth.
Triple glazing 4/18/4/18/4 U=0.5 W/m²K.
Warm spacer bar.
The triple gaskets arrangement provides excellent insulation against cold, moisture and noise.
Possibility of using glazing units up to 57mm.
Embedding the glass in the profile to a depth of 26mm provides greater safety and reduces water vapor condensation.
Roto Secustic handle.
Seals can come in black or grey. Gaskets filling the lower level of the frame can come in white, black, caramel or grey.
Steel reinforcement in frame and sash with enclosed steel in the frame.
Roto NX fitting.
Micro ventilation.
3 ROTO security-strikers in tilt-and-turn windows.
V-Perfect weld.
